SINO KA-500 0.001mm 70 120 170 220 270 320 370 420mm Slim Linear Scale KA500 1um Optical Encoder Ruler For Grinder Lathe Milling

KA-500 is a super-miniature thin ruler,it facilitates the use in somenarrow placesand the installation of special purpose measuring instrument.For the KA Series of linear encoder from our company,every ruler has passed through the strict quality measure technology dynamic laser control is used to ensure that the precision of every ruler has met the required standard before being deliveried from the factory.

KA-500 linear encoder avaliable in 70-520mm. Cross Section is 18X20mm.

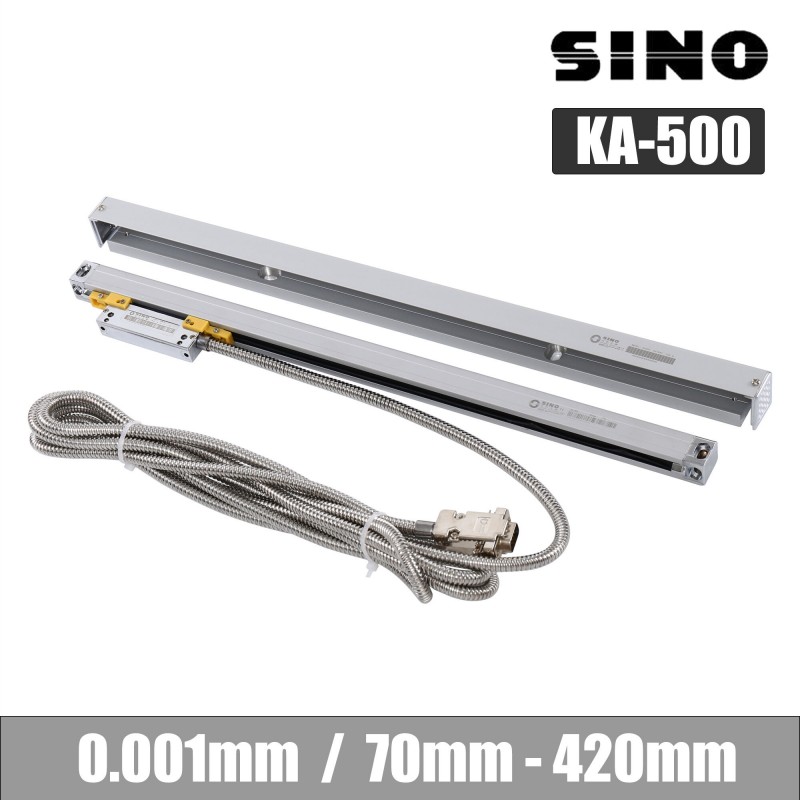

Package content

-1 piece 0.001mm Sino KA-500 scale,
-1 piece H type scale cover
-1 piece mounting bracket
-1 piece screw bag

Parameter

Available Measrus Length: 70mm-520mm
Cross Section: 18mm X 20mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Reference point: one unit per 50mm
Protection level: IP55
Resolution: 1um(0.001mm)
Output signal: TTL
Cable standard: 3 meters
Connetor: 9 Pins
